Spectra Vista Corporation HR-1024i
Overview
The HR-1024i from the Spectra Vista Corporation (SVC) is a high performance, single-beam field spectroradiometer measuring over the visible to short-wave infrared wavelength range (350-2500nm). The HR-1024i features include an integral graphic display, an internal RGB camera, a low noise indium gallium arsenide (InGaAs) photodiode arrays for measurements in SWIR spectrum, an internal GPS with automatic time and location data saved with each data file’s meta data, a robust compact light weight housing, an external detector interface, and wireless communication via laptop, Trimble tablet, Android phone or PDA computers.
The HR-1024i can be operated through its Panasonic Toughbook computer with full graphic, data storage and functional control. For greater convenience a rugged PDA provides control of the system with graphing and data capture. In stand-alone mode, the instrument is ‘autonomous’ with touch screen graphic display for control and data capture and storage through the spectroradiometer’s internal processor without the need for an external computer.

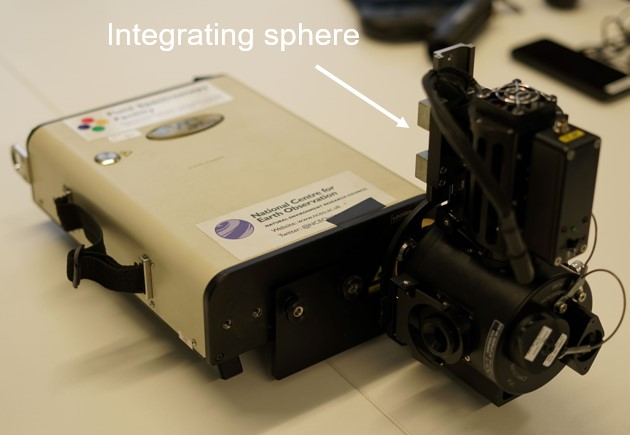

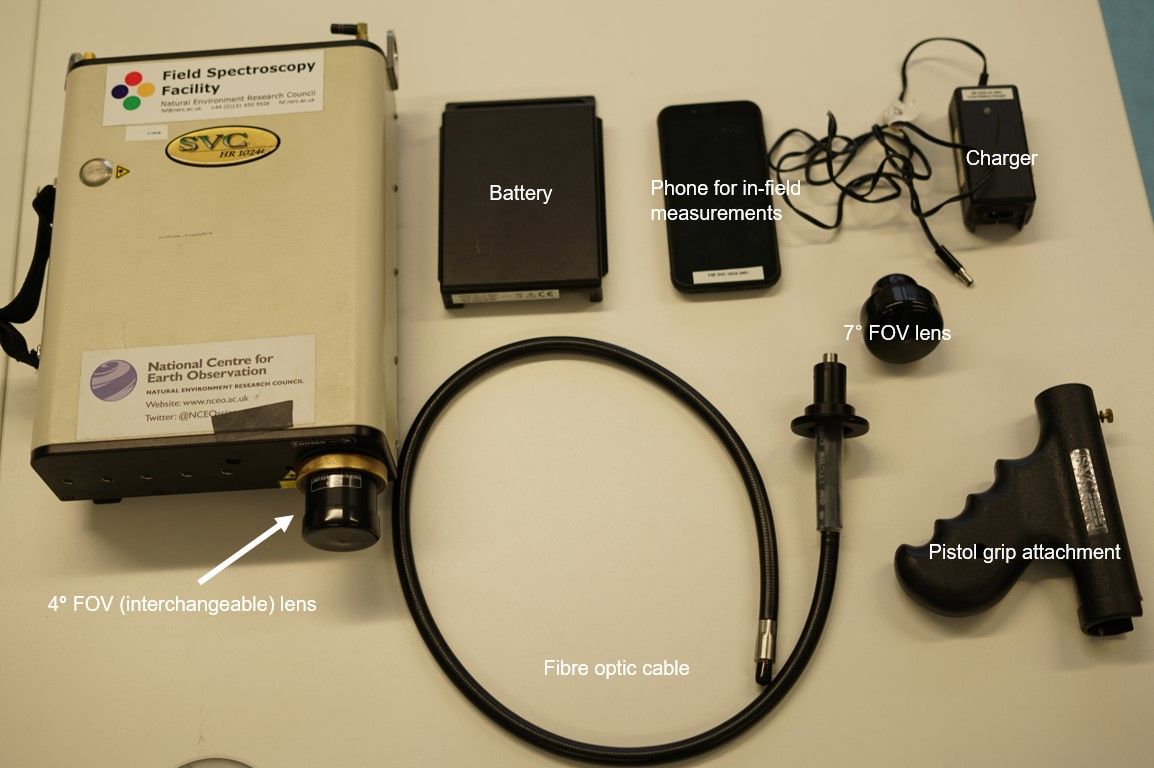

Three interchange fore optic lenses are included with the system together with a fibre optic light guide giving a wide range of fields of view to suit each application. The HR-1024i and be configure with the FSF custom integrating sphere for high precision downwelling irradiance measurements. A shade arm can also be fitted to the integrating sphere for diffuse / sky irradiance measurements.
The spectroradiometer can be tripod mounted with the internal laser providing precise alignment to the target. Alternatively the HR-1024i can be mounted on a monopod or hand held for either stand-alone or PC control. A backpack is available for carrying the spectroradiometer when used with the fibre optic light guide.
A selection of tripods, a jib and a monopod are available form the facility. Battery chargers and car adaptors are also provided.
Technical Specification
| Value | |
|---|---|
| Spectral range | 350 nm – 2500 nm |
| Sampling Interval | 1.5 nm between 350 nm – 1000 nm; 3.8 nm between 1000 nm – 1890 nm; 2.5 nm between 1890 nm – 2500 nm |
| Spectral Resolution | 3.5 nm at 700 nm; 9.5 nm at 1500 nm; 6.5 nm at 2100 nm |
| Scanning Time | Automatic with programmable options or manual control. Typical multi-scan acquisition time <10 seconds |
| Fore Optic Lenses - Field of View | 4°, 7°, 14° |
| Fore Optic Accessories | Fibre optic light guide with pistol grip attachment (FOV – 14°); Irradiance integrating sphere; leaf reflectance probe |
| Power source | Interchangeable 7.4V lithium ion rechargeable battery packs; mains power adaptor |
| Weight | 3.9 kg |
| Size | 22cm x 29cm x 8cm |
Example applications
- Loan reference 884.1121, “Establishing the spectral signature of chronic ozone stress in broadleaf tree species from field spectroscopy instruments”
- Loan reference 890.0322, “Understanding the spectral differences of Sargassum species and their decomposition stage”
- Loan reference 858.1120 , “ECO-SNOW – The past, present and future of snow algae in Antarctica: a threatened terrestrial ecosystem?”
Units Available for Loan
| Model and Serial Number | Documents and Software |
|---|---|
| SVC HR-1024i 2001 | Manual |
| SVC HR-1024i 2003 | Manual |
| SVC HR-1024i 2066 | Manual |
| SVC HR-1024i 2098 | Manual |

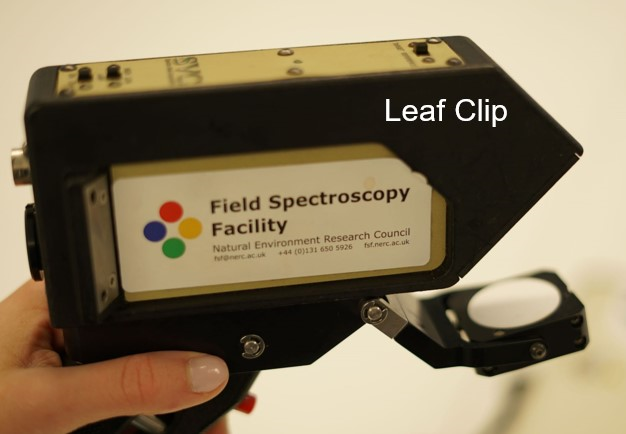

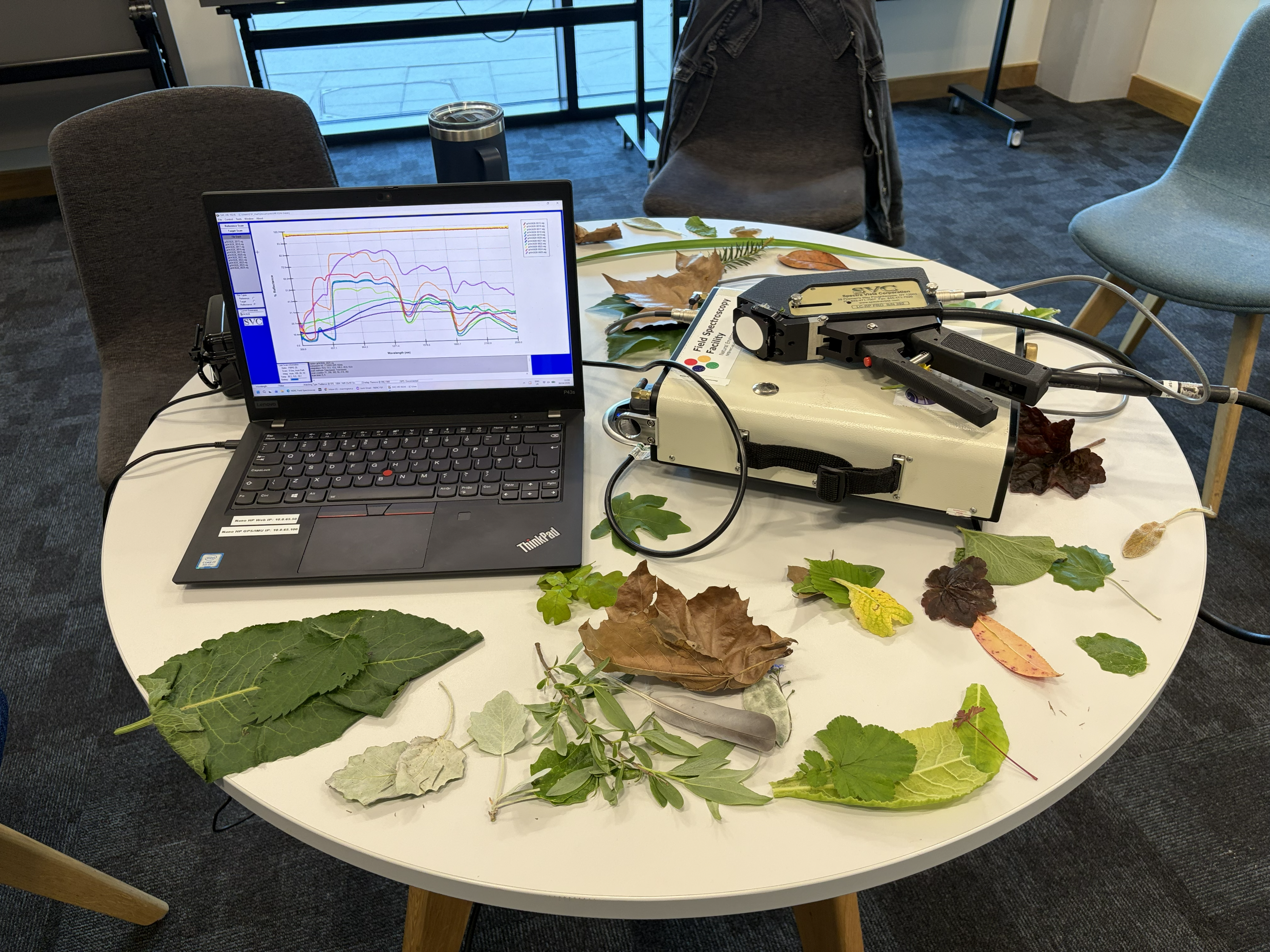

| SVC HR-1024i Leaf Clip Reflectance Probe-1 | Manual |
| SVC HR-1024i Leaf Clip Reflectance Probe-2 | Manual |
| SVC HR-1024i Contact Probe-1 | Manual |
