MicaSense RedEdge-M
Overview

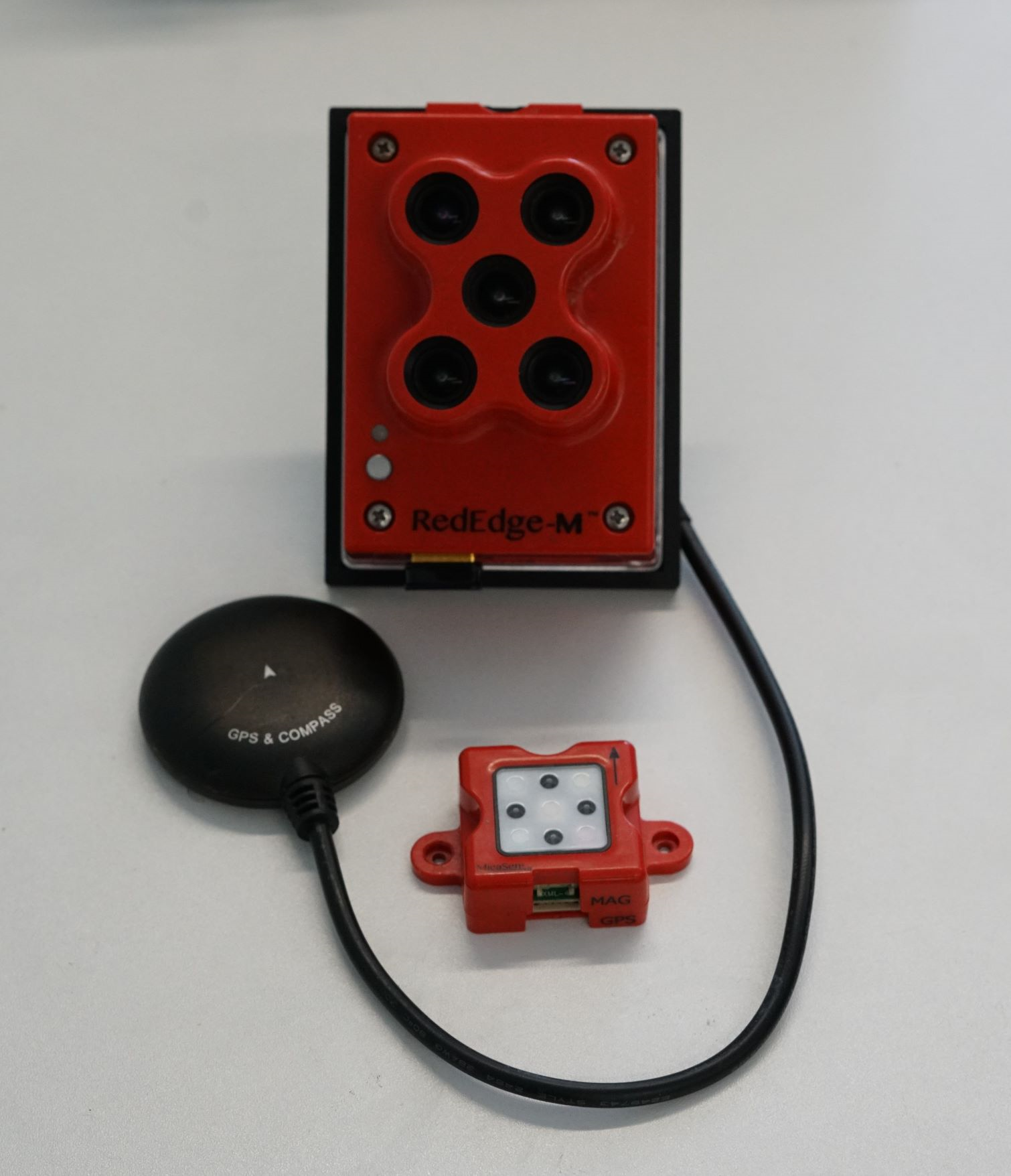

The MicaSense RedEdge-M is a rugged multispectral camera focusing on the acquisition of vegetation health indices within the visible to NIR. It sacrifices the thermal capabilities of the Altum for a lower payload weight and power draw. It consists of 5 multispectral bands – blue, green, red-edge, and the near infrared – that are used for the calculation of indices such as NDVI. Like the MicaSense Altum, the camera is calibrated by the use of a reflectance panel and downwelling light sensor (DLS 2), which includes an integrated GPS unit.
Technical Specification
| Value | |
|---|---|
| Spectral Bands (with centre wavelength) | Blue (475 nm), Green (560 nm), Red (668 nm), Red edge (717 nm), Near infrared (840 nm) |
| Sensor Resolution | 2064 x 1544 (3.2 MP) at 120 m |
| Ground Sampling Distance | 8.0 cm per Pixel at 120 m (AGL) |
| Field of View | 47.2° |
| Focal Length | Multispectral: 0.8 cm; Thermal: 0.2 cm |
| Dimensions | 8.2 x 6.7 x 6.75 cm |
| Weight | 0.18 kg |
| External Power | 4.2 to 15.6 V |
| Power Input | Standby: 4.0 W; Average: 4.0 W; Peak: 8.0 W |
Units Available for Loan
| Model and Serial Number | Documents and Software |
|---|---|
| MicaSense RedEdge-M | Manual |
