Overview

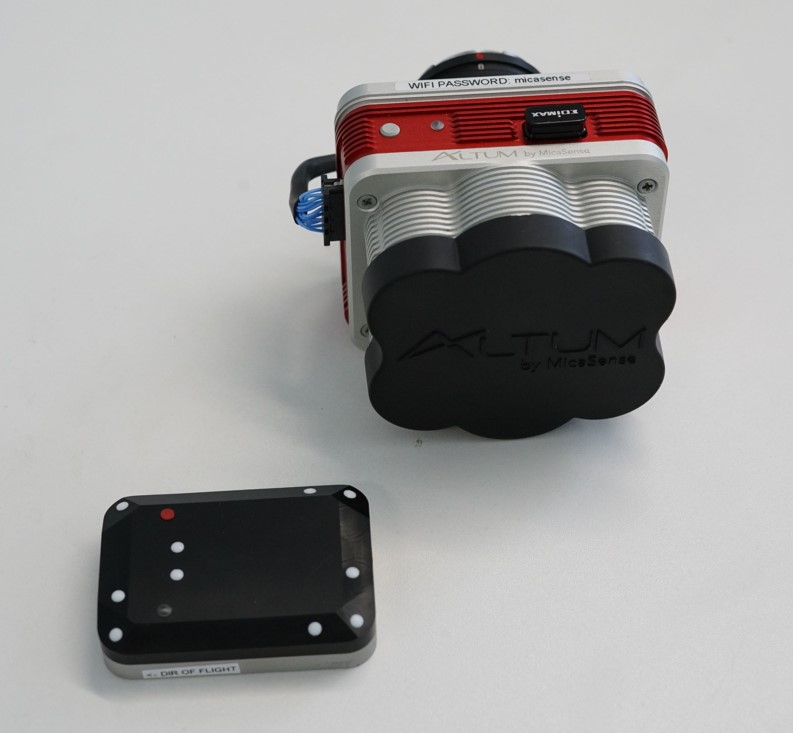

The MicaSense Altum is a lightweight, multispectral camera allowing for the synchronized capture of high resolution multispectral, panchromatic, and thermal imagery.
Thermal and multispectral outputs are calibrated by the use of a reflectance panel and downwelling light sensor (DLS 2), which includes an integrated GPS unit.
Technical Specification
|
|
Value |
| Spectral Bands (with centre wavelength) |
Blue (475 nm), Green (560 nm), Red (668 nm), Red edge (717 nm), Near infrared (840 nm), and Thermal (11 µm) |
| Sensor Resolution |
2064 x 1544 (3.2 MP per EO Band) at 120 m; 81 cm per Pixel at 120 m (Thermal) |
| Ground Sampling Distance |
5.28 cm per Pixel (per EO Band) at 120 m (AGL); 81 cm per Pixel at 120 m (Thermal) |
| Field of View |
Multispectral: 50.2° x 38.4°; Thermal: 57° x 44° |
| Focal Length |
Multispectral: 0.8 cm; Thermal: 0.2 cm |
| Dimensions |
8.2 x 6.7 x 6.75 cm |
| Weight |
0.41 kg |
| External Power |
4.9 to 25.2 V |
| Power Input |
Standby: 5.5 W; Average: 7.0 W; Peak: 10 W |
Units Available for Loan
| Model and Serial Number |
Documents and Software |
| MicaSense Altum |
Manual |
Field Operation Video
