Midac Corporation Open Path FTIR Model M4401-SP
Overview

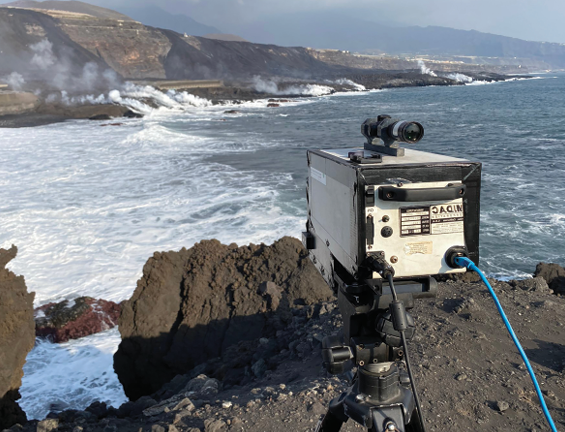

The Midac Model M4401-SP Open Path Fourier Transform Infrared (FTIR) field spectrometer is a portable FTIR instrument providing hyperspectral measurements in the 1.5 to 15.5 μm spectral range. It is ideally suited for providing point measurements in support of atmospheric sciences, wildfire ecology, or volcanology. In particular, the lightweight and portable nature of the instrument, coupled with high spectral resolution and broad spectral range, has made it a critical and key instrument used by the UK volcanology community, which often must plan rapidly around unpredictable eruptions in often difficult to reach areas.
Technical Specification
|
|
Value |
| Spectral Range |
5000 - 700 cm-1 |
| Optical Resolution |
programmable from 0.5 - 32cm-1 |
| Detector type |
Sterling Pump Cooled MCT |
| Beam Splitter |
ZnSe |
| Power Source |
12 V |
| Weight |
7.5 kg |
| Size |
36 × 18 × 17 cm |
Accessories
- Open Path Input Optics
-10” Φ Newtonian telescope
- 3” Φ Newtonian telescope, 10 millirad (mrad) Field Sources
- 20” diameter collimated beam form IR glower within a 20” parabolic gold reflector
- Field portable IR-301 blackbody sources with attachment for connection to FTIR
Example Applications
- Atmospheric measurements of carbon dioxide (CO2), sulfur dioxide (SO2) and methane (CH4)
- Volcanology
- Measurements of wildfires
- Biosphere-atmosphere interactions
- Reflectance measurements of materials in the infrared region
- Geological surveying
Units Available for Loan
