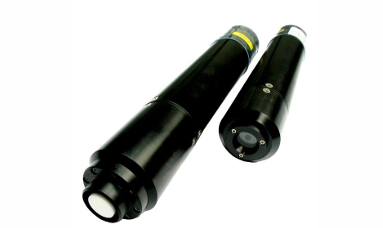

Satlantic Hyperspectral OCR
Overview
The facility provides access to a set of SatLantic Hyperspectral ocean colour radiometers (OCRS), which allow for simultaneous measurements of in air and in water downwelling irradiance and upwelling radiance. Through this, precise measurements of ocean colour can be taken, allowing for understanding of the chlorophyll content, organic dissolved matter, and sediment content of the water body to be made.
The set consists of two hyperspectral irradiance sensors, allowing for in air and in water spectral downwelling irradiance measurements; and one spectral upwelling radiance sensor for in-water measurements.
The sensors can be mounted on real-time profilers, moored on autonomous deep-water buoys, installed in autonomous underwater vehicles, as well as on ships and aeroplanes for above-water optic applications.
Technical Specification
| Value | |
|---|---|
| Spectral range | 350 nm – 800 nm |
| Spectral Interval | 3.3 nm |
| Spectral Resolution | 10 nm |
| Field of view | Radiance: 8° in water; Irradiance: Cosine response |
| Depth Rating | 250 m – 300 m |
| Power Source | 9 V –- 18 V DC, supplied via battery or bench power supply |
| Weight | 1.2 kg |
Example applications
- Loan reference 932.1506, “Remote sensing, optical, and molecular tools to investigate ecosystem structure, dynamics, and productivity in a changing ocean”
Units Available for Loan
| Model and Serial Number | Documents and Software |
|---|---|
| Satlantic HyperOCR(R) R08W 12v (in water upwelling radiance) | Manual |
| Satlantic HyperOCR(I) ICSW 12v (in water downwelling irradiance) | Manual |
| Satlantic HyperOCR(I) ICSW 12v (in air downwelling irradiance) | Manual |
